Raymond mill repair

---

We Are A Complete Industrial Machine Shop Job Shop Capable Of A Complete Raymond Mill Over Haul With Our Latest Technology Capabilities Provides a In House Parts Manufacturing With Shorter Lead Times & Less Production Down Time We Can Reverse Engineer Old Obsolete Parts To Meet Or Exceed Original Raymond mill Specs In. A Hurry ? We Offer Emergency Rush Repairs Our Shop Doors Remain Open 24/7 With 2 Crews Working Day And Night To Help Us Meet Your Expectations And Deadline Requirements Call Us Today For A Free Quote

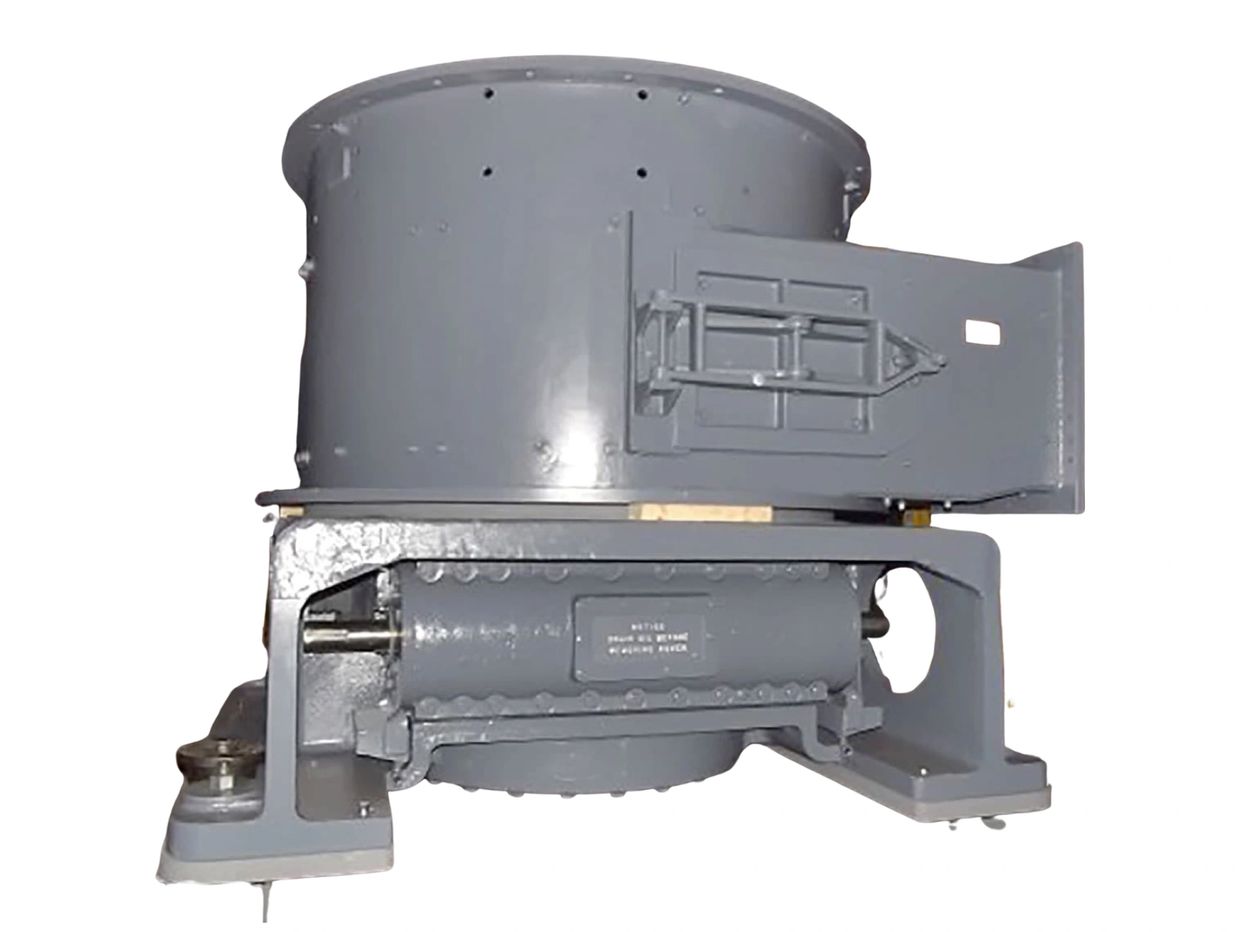

50 inch raymond mill parts

 Plow Holder  50"/R-2306
 Plow Body  50"/R-2311
 Plow Tip  50"/R-2312
 Plow Tip (heavy duty) 50"/R-2312HD
 Hardsurfaced plow Tip 50"/2312HS (H.S. both top & bottom)
 Port Liner  50"/R-3114N
 Port Liner Fabricated  50"/R-3114FAB
 Plow Support 50"/R-2310D (for 5- roll mill)
 Mill Bottom 50"/RR-7B
 Mill Bottom Liner 50"/R-3551A
 Mill Bottom Bolts 50"/R-1876
 Mill Bottom Bushing 50"/R-4082
 Spider 5-Journal 50"/R-3791C
 Spider 4-Journal 50"/R-3791B
 Spider Key 50"/R-663A
 Bull Ring 50"/R-343AX
 Bull Ring 50"/R-4555
 Bull Ring Clamp 50"/R-2592B
 Bull Ring Key 50"/R-3606
 Vertical Mill Shaft 50"/R-579F
 Vertical Shaft Bushing 50"/R-4081
 Upper Steel Button 50"/R-92
 Upper Bronze Button 50"/R-2330
 Lower Steel Button 50"/R-91
 Lower Bronze Button 50"/R-2329
 Gib Key MP-90550-AA (for pinion gear)
 Horizontal Drive Shaft 50"/R-2905
 Horizontal Shaft Bushing 50"/R-4083
 Horizontal Shaft Bushing 50"/R-4084
 Horizontal Shaft Bushing 50"/R-4085
 Oil Ring for Hor. Bushing 50"/R-389
 Step Box 50"/R-394
 85 Tooth Bevel Gear 50"/R-4042
 22 Tooth Pinion Gear 50"/R-4043
 Mill Side w/door(highwall)50"/R-3140C
 Mill Side Door 50"/R-3141
 Return Air Housing 50"/R-3505
 Rebuild Mill Base
 Pinion Shaft for Whizzer 50"/R-2973
 5'-6 Whizzer Seperator Top 50"/R-2827
 5'-6 Whizzer Drum Section 50"/R-2828
 5'-6 Whizzer Bottom & Cone 50"/R-3437L & 50"/R-3385
 5'-6 Whizzer Double Blade Assembly
 4'-8 Whizzer Seperator
 6'-0 Whizzer Seperator
 7'-0 Whizzer Seperator
 8'-0 Whizzer Seperator


66 inch raymond mill parts

  Plow Holder 66"/GR-1647
 Plow Body 66"/GR-271A
 Plow Tip 66"/GR-270
 Plow Tips (Hard Surfaced) 66"/GR-270HS
 Port Liners 66"/GR-2117AN
 Port Liners(fabricated) 66"/GR-2116FAB
 Mill Vertical Shaft (bushing type) 66"/GR-1022
 Mill Vertical Shaft (bearing type) 66"/GR-2978
 Horizontal input shaft 66"/GR-1705AA
 Bearing Cartridge 66"/GR-1710A
 Horizontal input roller bearing 66"/MP-6057
 Horizontal input tapered roller bearing assembly 66"/MP-6058
 Pinion adjusting shim set 66"/GR-2244
 Thrust Bearing Adaptor Plate 66"/GR-991A
 Mill Bottom Bushing 66"/GR-103
 Oil Pump Hub 66"/GR-992A
 Oil Pump Hub Bushing 66"/GR-993
 Bull Ring 66"/GR-115BX
 Bull Ring Clamp 66"/RL-849A
 Mill Spider Plate (6- roll) 66"/GR-1912A
 Mill spider plate (5-roll) 66"/GR-2045A
 Mill Spider Key 66"/GR-2427
 Mill Bottom Liners (set) 66"/GR-1346D
 Mill bottom bolts 66"/GR-1025A
 Plow Support (6- roll) 66"/GR-1648A (old # GR-1914)
 Plow Support (5- roll) 66"/GR-1790B
 Plow Assembly Rivets 66"/GR-181079
 Plow Holder Stud 66"/MP-7002D
 Plow Holder Dowel Pin 66"/MP-5615R
 Millside Assembly (highwall)
 Return Air Housing (windbox)
 Whizzer 8'-0

  Whizzer gearbox ws270A

  Whizzer gearbox  ws268
 Rebuild Mill Base

73 inch raymond mill parts

  Plow Holder 73"/RL-667A
 Plow Body 73"/RL-9
 Plow Tip 73"/RL-10
 Plow Tips (Hard Surfaced) 73"/RL-10HS
 Port Liners 73"/RL-976N
 Port Liners (fabricated) 73"/RL-976FAB
 Mill Vertical Shaft (bushing type) RL-736
 Mill Vertical Shaft 73"/RL-571
 Mill Vertical Shaft (bearing type) 73"/RL-1489
 Thrust Bearing Adaptor Plate 73"/RL-558-A
 Vertical Shaft Bushing 73"/RL-575-B (replaces old# RL-576)
 Mill Bottom Upper Bushing 73"/RL-185A
 Oil Pump Hub 73"/RL-874A
 Bull Ring 73"/RL-24AX
 Bull Ring Clamp 73"/RL-849A
 Mill Spider Plate (6 roll) 73"/RL-1780 replaces RL-473A
 Mill Spider Hub 73"/RL-474A
 Mill Spider Key 73"/GR-2427
 Mill Bottom Liners (set) 73"/RL-977/978
 Mill Bottom Bolt 73"/RL-522
 Plow Assembly Rivets
 Plow Support Stud 73"/MP-5679H
 Plow Support Dowel Pin 73"/MP-5615AM
 Horizontal Drive Shaft 73"/RL-826
 Intermediate Shaft 73"/RL-827
 Intermediate Shaft Bearing Adaptor Plate 73"/RL-823
 Horizontal Input Bearing Housing 73"/RL-824
 Millside Assembly (highwall)
 Return Air Housing (windbox)
 Rebuild Mill Base
